Sparse Matrix

What is Sparse Matrix?



 A matrix can be defined as a two-dimensional array having 'm' columns and 'n' rows representing m*n matrix. Sparse matrices are those matrices that have the majority of their elements equal to zero. In other words, the sparse matrix can be defined as the matrix that has a greater number of zero elements than the non-zero elements.



 The following are the advantages of using a sparse matrix:

• Storage: As we know, a sparse matrix that contains lesser non-zero elements than zero so less memory can be used to store elements. It evaluates only the non-zero elements.
• Computing time: In the case of searching n sparse matrix, we need to traverse only the non-zero elements rather than traversing all the sparse matrix elements. It saves computing time by logically designing a data structure traversing non-zero elements.

When a sparse matrix is represented with a 2-dimensional array, we waste a lot of space to represent that matrix. For example, consider a matrix of size 100 X 100 containing only 10 non-zero elements. In this matrix, only 10 spaces are filled with non-zero values and remaining spaces of the matrix are filled with zero. That means, totally we allocate 100 X 100 X 2 = 20000 bytes of space to store this integer matrix. And to access these 10 non-zero elements we have to make scanning for 10000 times. To make it simple we use the following sparse matrix representation.

Sparse Matrix Representations

A sparse matrix can be represented by using TWO representations, those are as follows...

1. Triplet Representation (Array Representation)
2. Linked Representation

Triplet Representation (Array Representation)

In this representation, we consider only non-zero values along with their row and column index values. In this representation, the 0^th row stores the total number of rows, total number of columns and the total number of non-zero values in the sparse matrix.

For example, consider a matrix of size 5 X 6 containing 6 number of non-zero values. This matrix can be represented as shown in the image...



 In above example matrix, there are only 6 non-zero elements ( those are 9, 8, 4, 2, 5 & 2) and matrix size is 5 X 6. We represent this matrix as shown in the above image. Here the first row in the right side table is filled with values 5, 6 & 6 which indicates that it is a sparse matrix with 5 rows, 6 columns & 6 non-zero values. The second row is filled with 0, 4, & 9 which indicates the non-zero value 9 is at the 0th-row 4th column in the Sparse matrix. In the same way, the remaining non-zero values also follow a similar pattern.



Example

To check Matrix is a Sparse Matrix or Not

    #include <stdio.h>
    #include<conio.h>
    void main ()
    {
      int row,col,i,j,a[10][10],count = 0;
   printf("Enter row\n");
   scanf("%d",&row);
   printf("Enter Column\n");
   scanf("%d",&col);
   printf("Enter Element of Matrix1\n");
   for(i = 0; i < row; i++){
      for(j = 0; j < col; j++){
         scanf("%d",&a[i][j]);
      }
   }
   printf("Elements are:\n");
   for(i = 0; i < row; i++){
      for(j = 0; j < col; j++){
         printf("%d\t",a[i][j]);
      }
      printf("\n");
   }
   /*checking sparse of matrix*/
   for(i = 0; i < row; i++){
      for(j = 0; j < col; j++){
         if(a[i][j] == 0)
            count++;
      }
   }
   if(count > ((row * col)/2))
      printf("Matrix is a sparse matrix \n");
   else
      printf("Matrix is not sparse matrix\n");
    getch();
    }



Output

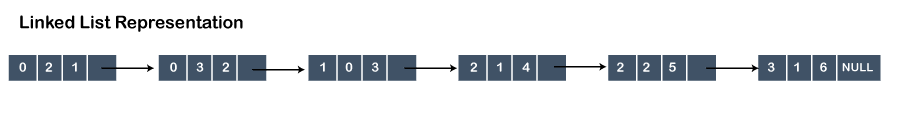

Linked List Representation

In linked list representation, linked list data structure is used to represent a sparse matrix. In linked list representation, each node consists of four fields whereas, in array representation, there are three fields, i.e., row, column, and value. The following are the fields in the linked list:

• Row: It is an index of row where a non-zero element is located.
• Column: It is an index of column where a non-zero element is located.
• Value: It is the value of the non-zero element which is located at the index (row, column).
• Next node: It stores the address of the next node.
